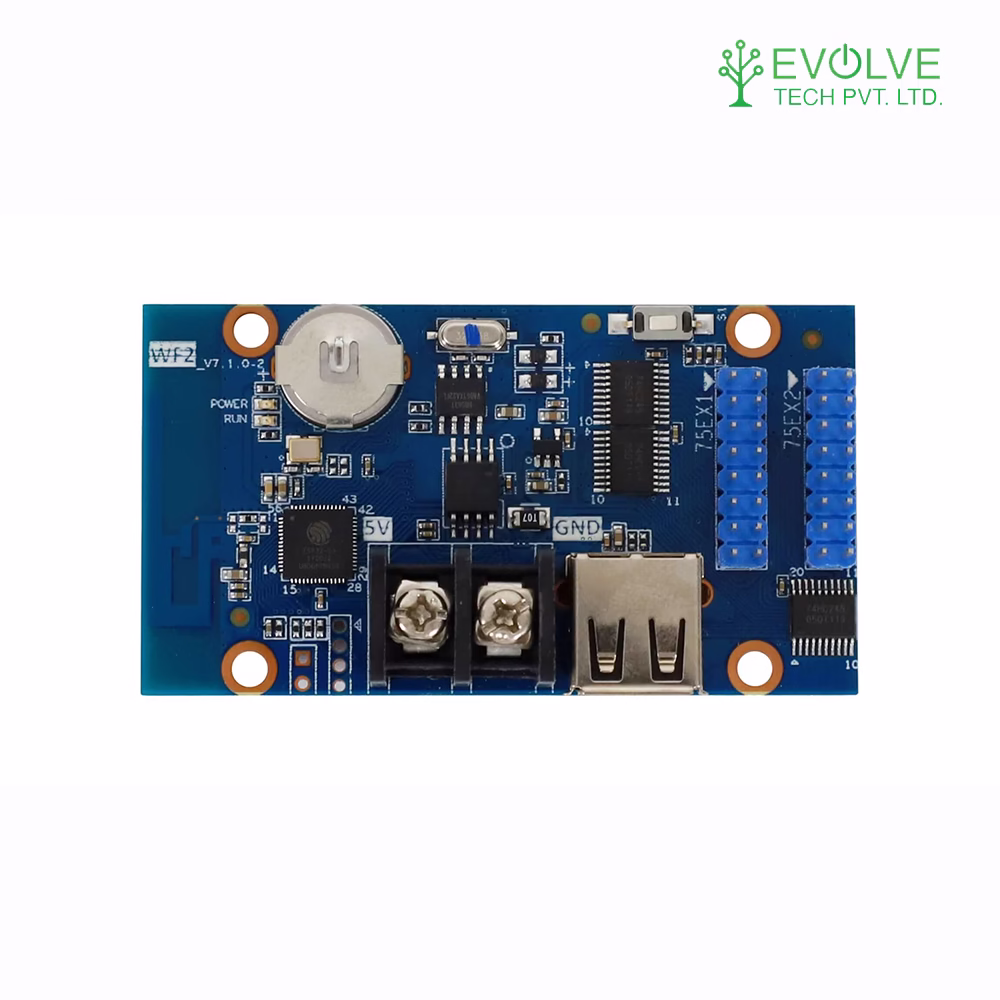

Huidu HD-WF2 Control Card

Name: Huidu HD-WF2 Control Card
Brand: Unilumin
SKU: EVOLVE-1443
Price: 1800 NPR
Availability: InStock

The Huidu HD-WF2 is a compact and cost-effective Wi-Fi control card designed for single and dual-color LED displays. Equipped with two HUB75E ports, it supports full-color modules and is compatible with both conventional and ICN2038S chips. The card offers a control range of up to 1280×32, 768×64, or 384×128 pixels, making it suitable for various applications such as storefront signs, door lintels, and vehicle-mounted displays.

PriceRequest a quote

Request itemised quote Ask on WhatsApp

Official warranty Installed by our engineers Spares in Kathmandu

Specifications

EnvironmentIndoor

Huidu HD-WF2

Function	Parameters
Support Module	Support HUB75 port full color module, support normal and ICN2038 IC
Scan mode	Support static to 1/32S
Control range	128032, 76864, 384*128
Communication Port	Wi-Fi, U-Disk
FLASH Capacity	8M Byte
Support RGB	Full-color module can display red, green, blue, yellow, Purple, green, white
Gray level	8 level, support full color text
Program Quantity	999 programs, support switch the program by wifi remote
Area Quantity	20 pcs areas with separate zone and separate special effects and border
Display Showing	Text、Animated word、3D Word、Image & Text（Picture、SWF）、 Excel、Time、Temperature（humidity）、Timing、 Count、Lunar calendar
Automatic switch screen	Support timer switch machine
Dimming	Support brightness setting, time period brightness setting
Power supply	Micro USB, standard 5V
Certification	CE、FCC、RoHS
