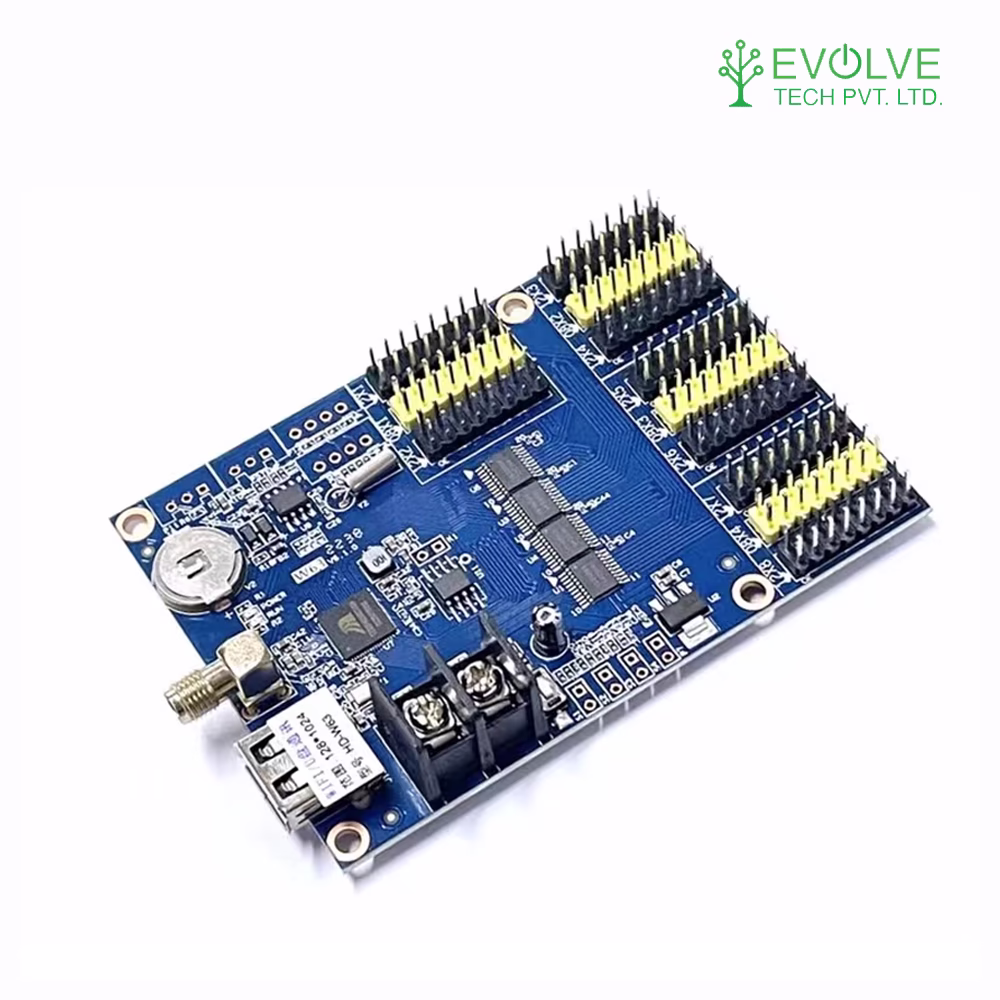

Huidu HD-W63 Controller card

Name: Huidu HD-W63 Controller card
Brand: Unilumin
SKU: EVOLVE-1451
Price: 6500 NPR
Availability: InStock

The Huidu HD-W63 is a Wi-Fi control card for single, dual, and RGB LED displays, supporting up to 1024×128 pixels (single-color) and 672×64 pixels (RGB). It allows content updates via Wi-Fi or USB U-disk and features 8 HUB12 and 4 HUB08 output ports. Compatible with Huidu’s HD2020 software and LedArt app, it supports multiple display areas, custom effects, and sensor integration, making it ideal for storefronts, vehicle displays, and decorative LED signage.

PriceRs. 6,500 excl. VAT

Supply price in NPR. Delivery, installation and VAT are itemised in your quote; volume and project pricing available.

Request itemised quote Ask on WhatsApp

Official warranty Installed by our engineers Spares in Kathmandu

Specifications

EnvironmentIndoor

Huidu HD-W63

Function	Parameters
Loading capacity	Single color: 1024W*128H, (widest 2048，highest 128 pixels)
FLASH capacity	4M Byte
Communication method	Wi-Fi, U-disk
Programs quantity	1000
Area Quantity	Support MAX 20 areas with separate zone, and separated special effects and border.
Program contents	Support running text, time, count, digit, animation, temperature and humidity, excel, traditional Chinese calendar, offline weather.
Play mode	Play in order, switch by button, switch by IR remote.
Clock function	1. Support perpetual calendar, analog clock, lunar calendar 2. Counting up and down display 3. The font, font size, color, position, etc. can be set arbitrarily 4. Support multi-time zone display
Extended Equipment	Temperature, humidity, IR remote, brightness, PM2.5/PM10 etc. sensors
Screen on/off	Support screen on/off by time automatically
Brightness adjustment	Support 3 modes: adjust by hand, adjust by sensor automatically, adjust by time automatically.
Product power	3W
