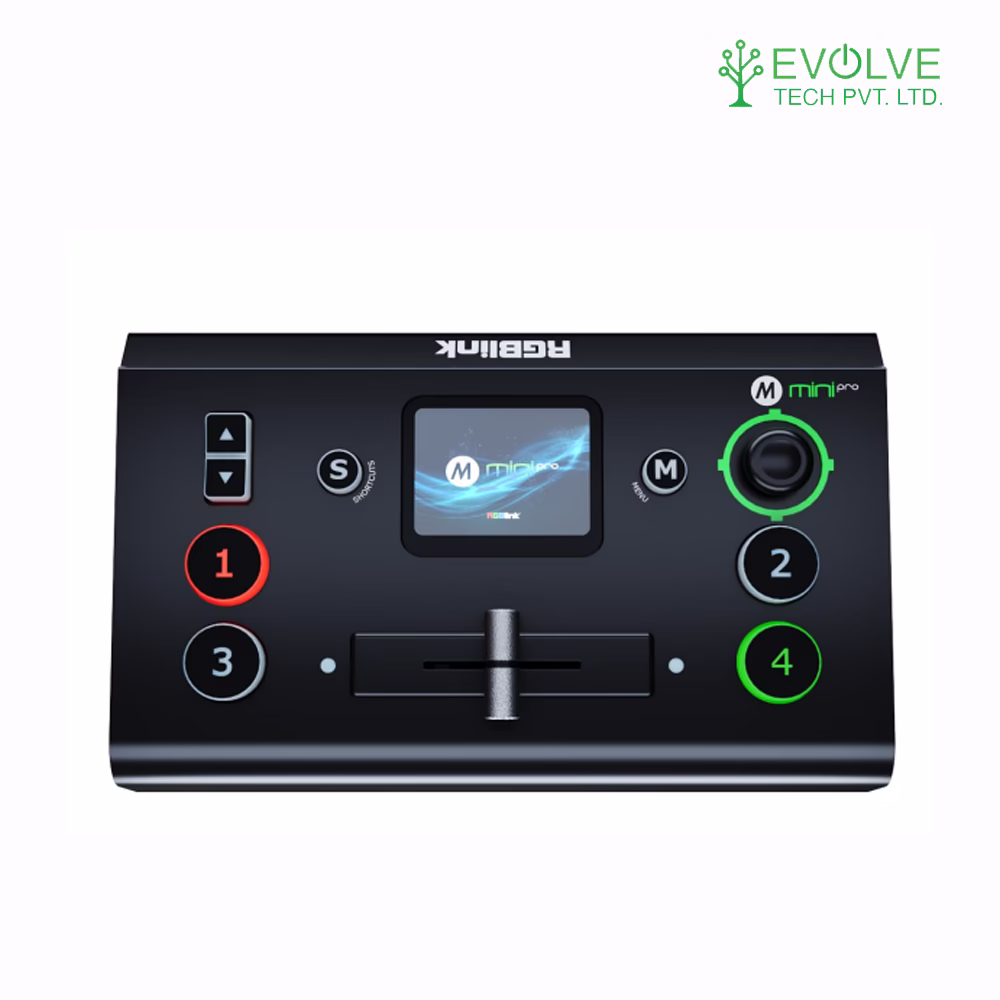

RGBlink Mini-ProV3 Video Processor

Name: RGBlink Mini-ProV3 Video Processor
Brand: Unilumin
SKU: EVOLVE-1453
Price: 86400 NPR
Availability: InStock

The RGBlink Mini-Pro V3 is a compact video switcher ideal for live streaming and professional video production. It features 4 HDMI 2.0 inputs supporting up to 4K@60Hz, dual HDMI outputs, and USB 3.0 streaming compatible with platforms like YouTube and Zoom. The device allows simultaneous multi-platform streaming via RTMP(S), one-key recording to USB, and PTZ camera control with VISCA protocol. With a 2.1-inch touchscreen and intuitive interface, it’s perfect for events, gaming broadcasts, and worship services.

PriceRequest a quote

Request itemised quote Ask on WhatsApp

Official warranty Installed by our engineers Spares in Kathmandu

Specifications

EnvironmentIndoor

RGBlink Mini-ProV3

Function	Parameters	Description
Input	HDMI 4K	4×HDMI-A
Output	HDMI 2K USB (Record) USB (Stream)	2×HDMI-A 1×USB-A 1×USB-A
Audio	Input Ouput	2×3.5mm mini-Jack 1×3.5mm mini-Jack
Communication/Stream	LAN	1×RJ45
Power	Power Supply	1×USB-C
Input Resolutions	HDMI 2.0	1280 ×720p@50/60 \| 1280 ×768p@60 \|1280 ×1024p@60 \| 1360×768p@60 \| 1366×768p@60 \| 1600×900p@60 \| 1920 ×1080i@50/60 \| 1920 ×1080p@30/50/60 \| 3840 ×2160p@23.97/24/25/29.97/30/50/59.94/60
Output Resolutions	HDMI 1.3 USB	1280 ×720p@50/60 \| 1920 ×1080p@24/30/50/60 1280 ×720p@60 \| 1920×1080p@24/25/30/50/60
Video	Bit Depth	8 bit/10 bit/12 bit
Video Formats	HDMI 2.0 \| HDCP 2.2
Color Space	RGB 8bit \| YUV 4:4:4 \| YUV 4:2:2 \| YUV 4:2:0
Video Latency	<3 frames
Audio	Audio Format	LPCM/2ch/24bit/16bit/48kHZ
Color Space	RGB 8bit
Record/Storage	Record Formats	MP4 (up to 16Mbps)
Disk Formats	FAT32( ≤32 GB) \| exFAT(64GB~2T)
Supported Standards	HDMI	2
USB	3	H.265 ITU-T H.265/ ISO/IEC 23008 -2
Compatability	USB Power Delivery (PD) 3.0
Supported Cables	Certified USB PD Aware
Input Voltage	PD 12V/1.5A
Maximum Power	20W
Temperature	0℃~60℃
Humidity	10%~85%
Net Weight	0.42kg
Packaged Weight	1.20kg
Net Dimension	180.6mm × 112.7mm × 53mm
Packaged Dimension	255mm × 145mm × 85mm
