Indoor

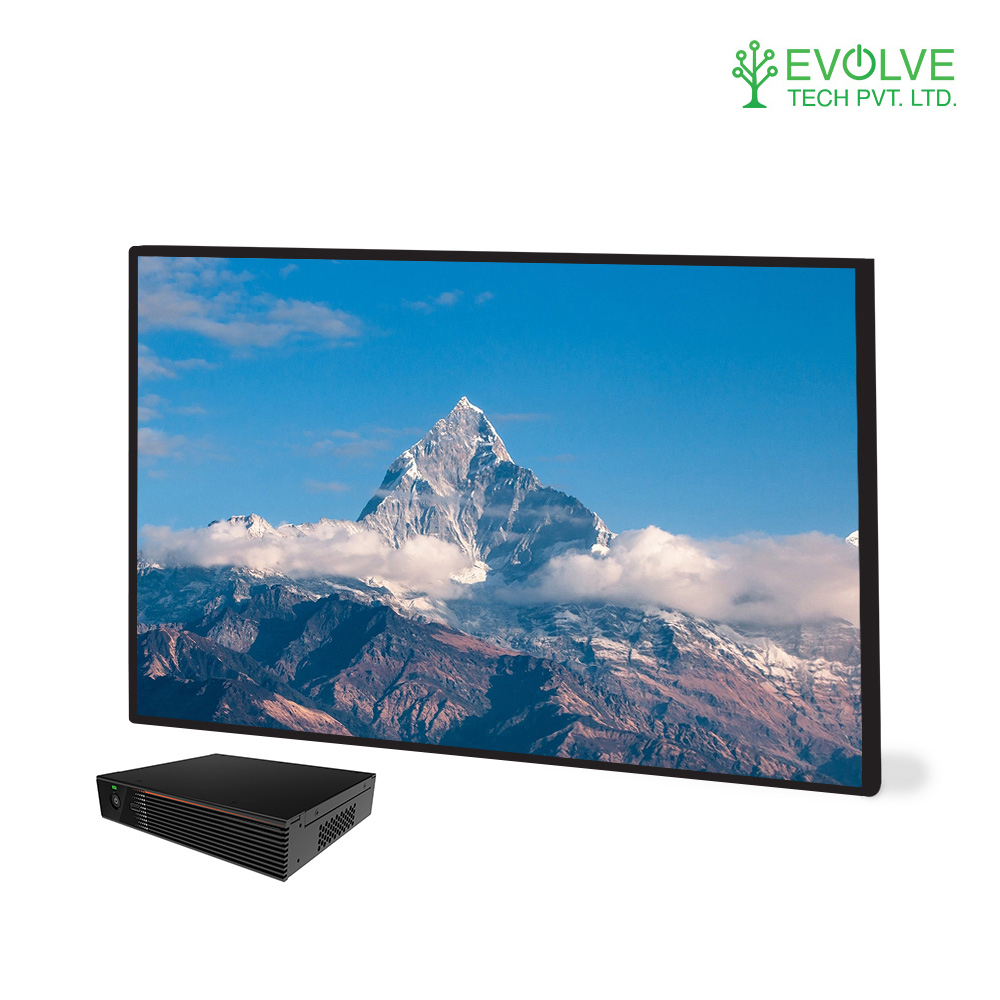

115.6 Inch LC4 Indoor LED Display
The LC4 Indoor LED display features a robust aluminum and steel frame structure, integrated with magnetic locks for seamless installation. It includes a high-performance video processor, ensuring vibrant visuals and smooth playback. Ideal for indoor environments requiring reliability, clarity, and ease of maintenance.
Pixel pitch4 mm
Best viewed from4 m+
Brightness800 nits
PriceRequest a quote per m², installed
Request itemised quote
Ask on WhatsApp Official warranty Installed by our engineers Spares in Kathmandu
Specifications
Pixel pitchP4
EnvironmentIndoor
LC4 Indoor
Parameter | Value |
Pixel Pitch | 4mm |
LED Type | SMD2121 |
Module Resolution（W×H） | 80×40=3200 Pixels |
Pixel density（pixels/sq.m.） | 62500 dot/㎡ |
Module Size (WxHXD) | W320mmxH160mmxD16.2mm |
Module Weight | 0.46±0.02kg |
HUB | HUB75 |
Single-dot Brightness Calibration | Support |
Brightness | ≥500 cd/㎡ |
Color Temperature | 2000K～9300K Adjustable |
Beam Angle（Hor/Ver°） | 140°/140° |
Brightness/Color Uniformity | ≥98% |
Contrast Ratio | 5000:1 |
Input Power | 488 W/㎡ |
Input Power | 163 W/㎡ |
Power Supply Input Voltage | AC90～132V/ AC186～264V, Frequency 47-63（Hz） |
Frame Changing Frequency | 60Hz |
Refresh Rate | 3840Hz（Standard） 7680Hz（Optional） |
Processing Depth | 12~14Bit |
Video Support | 2K HD, 4K UHD |
Life Span（hrs） | 100000hrs |
Working Temp/Humidity（℃/RH） | -20℃~45℃ / 10%~50%RH (No Condensation) |
Storage Temp/Humidity（℃/RH） | -20℃~50℃ / 10%~60%RH (No Condensation) |
Certification | BIS/CE/CB/ROHS/EAC |
