Indoor

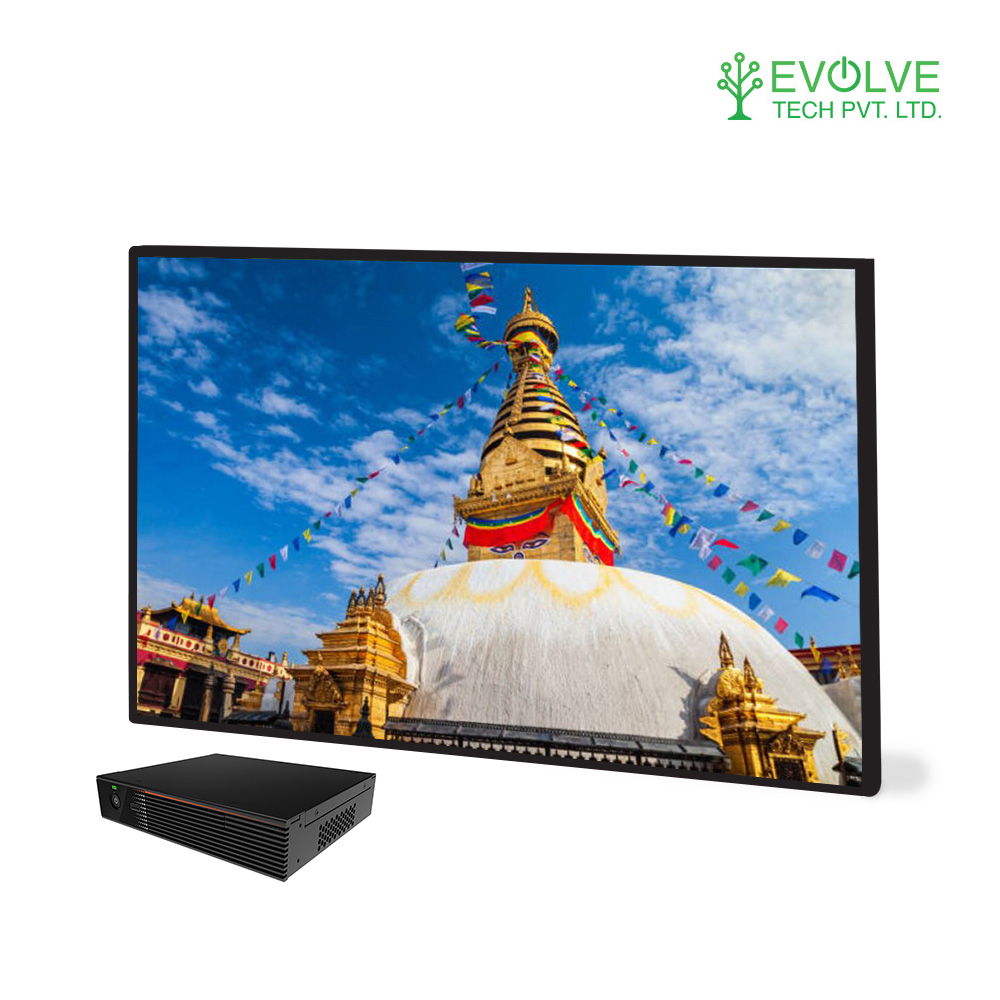

84.5 Inch LDA || pro 3.076 (P3) Indoor LED Display
The LDA3.076 Indoor display features a pre-built aluminum die-casting cabinet for enhanced durability and precision. It comes integrated with a high-performance video processor, ensuring seamless visual output. Ideal for indoor LED applications, this all-in-one solution offers easy installation, sleek design, and superior display quality for professional environments.
Pixel pitch3 mm
Best viewed from3 m+
Brightness800 nits
PriceRs. 294,840 excl. VAT
Supply price in NPR. Delivery, installation and VAT are itemised in your quote; volume and project pricing available.
Request itemised quote Ask on WhatsApp Official warranty Installed by our engineers Spares in Kathmandu
Specifications
Pixel pitchP3
EnvironmentIndoor
LDA 3.07
Parameter | Value |
Pixel Pitch | 3.076mm |
LED Type | SMD2121 |
Module Resolution（W×H） | 104X52=8192 Pixels |
Pixel density（pixels/sq.m.） | 105625 dot/㎡ |
Module Size (WxH) | W320mmxH160mm |
Cabinet Size (WxHxD) | 640mmx480mmx71.5mm（With Back Cover） |
Cabinet Weight (kg/panel) | 8.1 kg |
Maintenance | Front and Rear maintenance |
Ingress Protection | IP30 |
Planeness | ≤0.5mm |
Cabinet Material | Die-casting Aluminum |
Single-dot Brightness Calibration | Support |
Brightness | 600 cd/㎡ |
Color Temperature | 2000K～9300K Adjustable |
Beam Angle（Hor/Ver°） | 160°/140° |
Brightness/Color Uniformity | ≥98% |
Contrast Ratio | 5000:1 |
Input Power | 295 W/㎡ |
Input Power | 89 W/㎡ |
Power Supply Input Voltage | AC200-240V，Frequency 47-63(Hz) |
Frame Changing Frequency | 60Hz |
Refresh Rate | 3840Hz |
Processing Depth | 12~14Bit |
Video Support | 2K、4K |
Life Span（hrs） | 100000hrs |
Working Temp/Humidity（℃/RH） | -20℃~45℃ / 10%~60%RH (No Condensation) |
Storage Temp/Humidity（℃/RH） | -20℃~50℃ / 10%~65%RH (No Condensation) |
Certification | CE/CB/ROHS/EAC |
